Overview

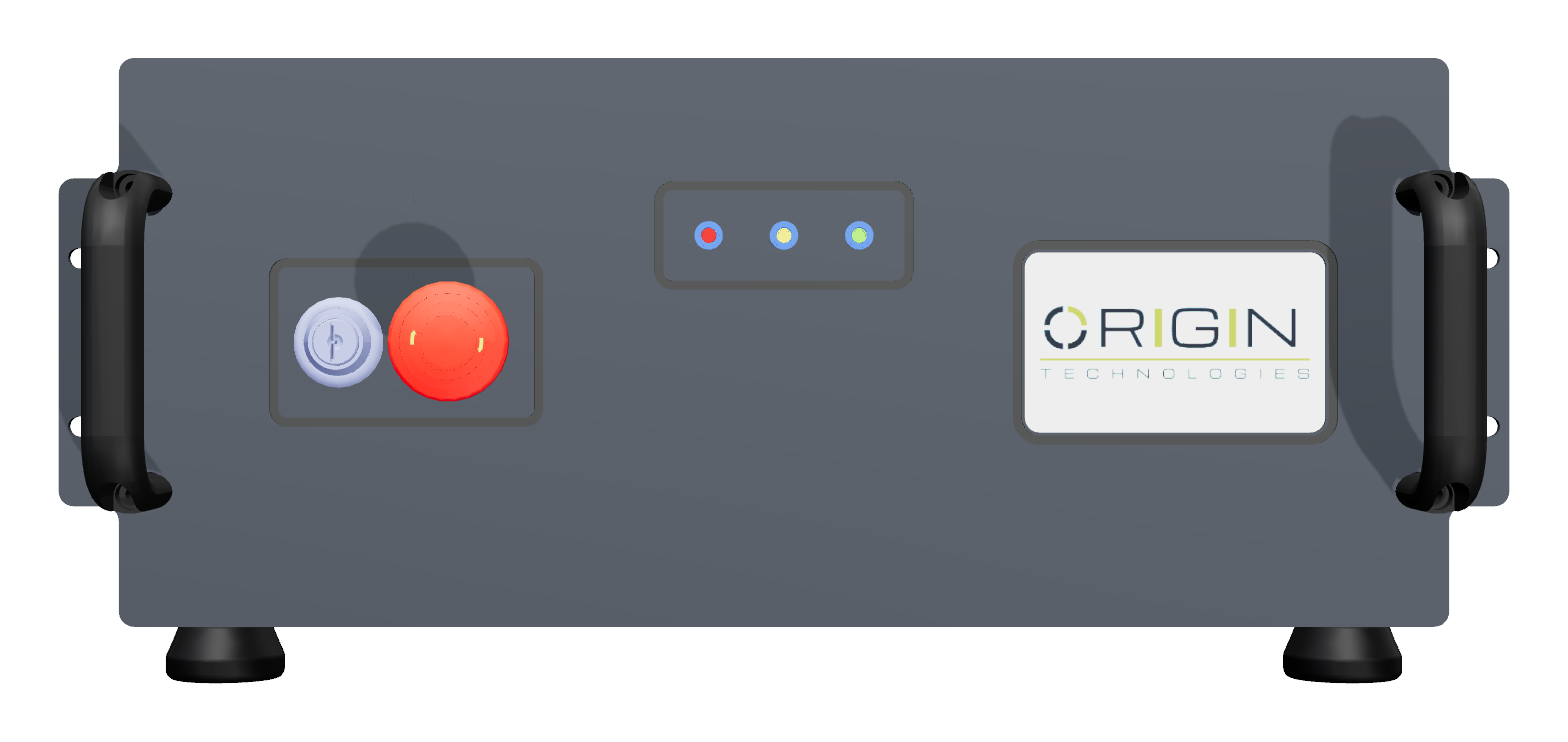

The ORGFL5000 delivers 5 kW of continuous-wave power at 1080 nm with M² < 3 through a 10 m QBH output fiber. Power is adjustable from 10 to 100 %, with modulation up to 10 kHz. The front panel carries a key switch, emergency stop and status indicators; control runs over Ethernet, RS-485 or CAN-BUS — chosen by the user.
Gallery
Key features
High-power beam
5 kW CW at 1080 nm with M² < 3 — for thick-plate cutting and deep-penetration welding.
Fast modulation
0.005–10 kHz modulation for piercing and contour cutting, with power adjustable from 10 to 100 %.
Flexible connectivity
Ethernet, RS-485 or CAN-BUS control interface, selected to match your machine controller.
Industrial & safe
Water-cooled chassis with key switch, emergency stop, status LEDs and a 650 nm red aiming beam.

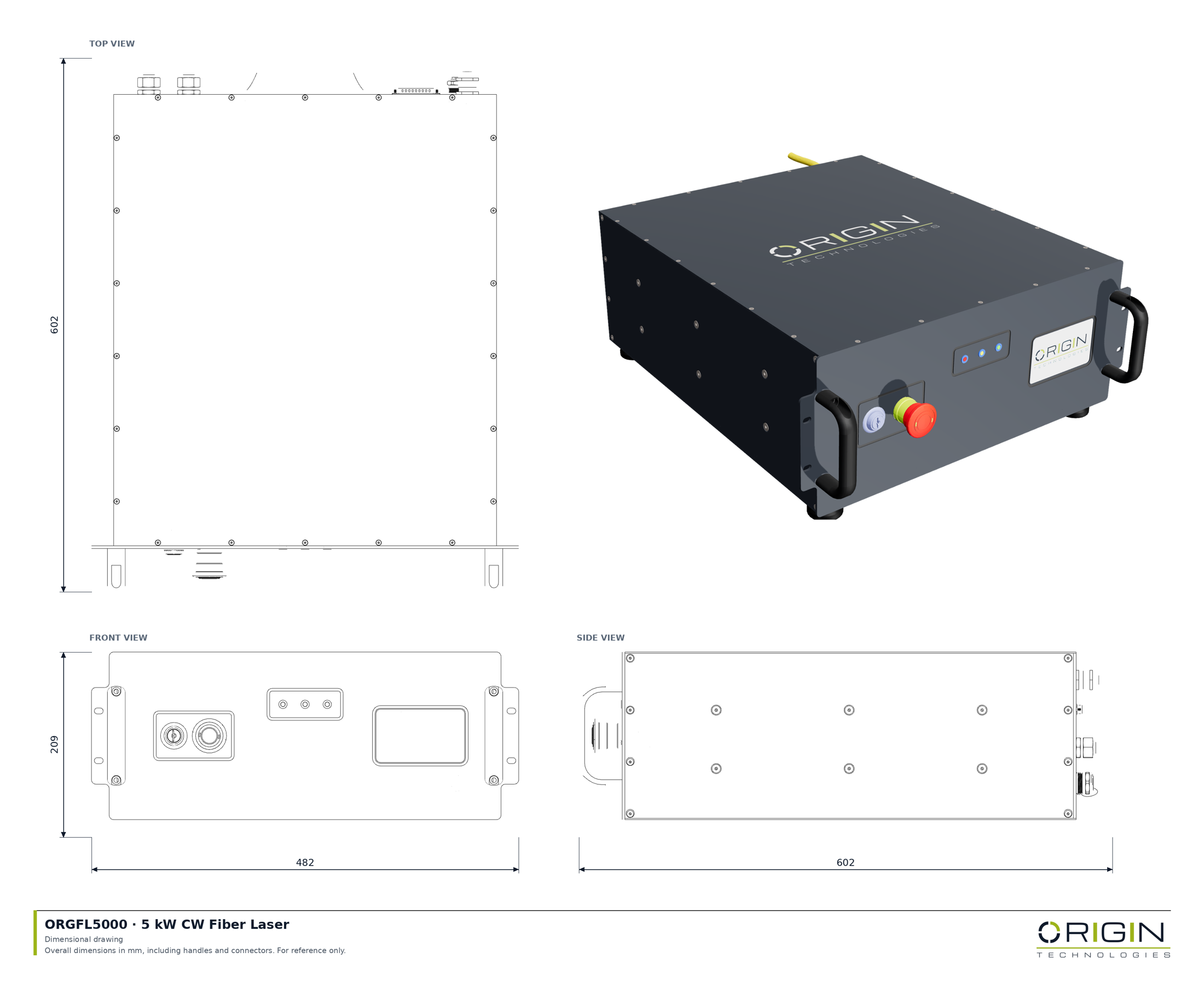

Dimensions
Overall dimensions in mm — top, front and side views.
Click to open full size.
Specifications
| Optical | |
|---|---|
| Output power | 5000 W (4750–5150 W) |
| Operation mode | CW |
| Power adjustment range | 10–100 % |
| Center wavelength | 1080 ± 5 nm |
| Emission bandwidth (FWHM) | 8 nm typ., ≤ 10 nm |
| Rise / fall time (1–95 %) | ≤ 50 µs |
| Modulation frequency | 0.005–10 kHz |
| Beam quality (M²) | < 3 |
| Aiming beam | 650 nm red, 1 mW |
| Output fiber | QBH, 10 m |
| Wall-plug efficiency | ≥ 30 % |
| Electrical & control | |
| Supply | 380 VAC, 3-phase |
| Power consumption | 16 kW typ., 17 kW max. |
| Communication interface | Ethernet, RS-485 or CAN-BUS (user-selectable) |
| Cooling & environment | |
| Cooling | Water-cooled |
| Coolant temperature | 25 ± 1 °C |
| Flow rate | ≥ 42 L/min |
| Required cooling capacity | 10 kW (9–11 kW) |
| Operating temperature | 0–40 °C |
| Storage temperature | −5 to 50 °C |
| Relative humidity | 5–95 % |
| Mechanical | |
| Dimensions (W × H × D) | 520 × 300 × 850 mm |
| Weight | ≤ 135 kg |
