Overview

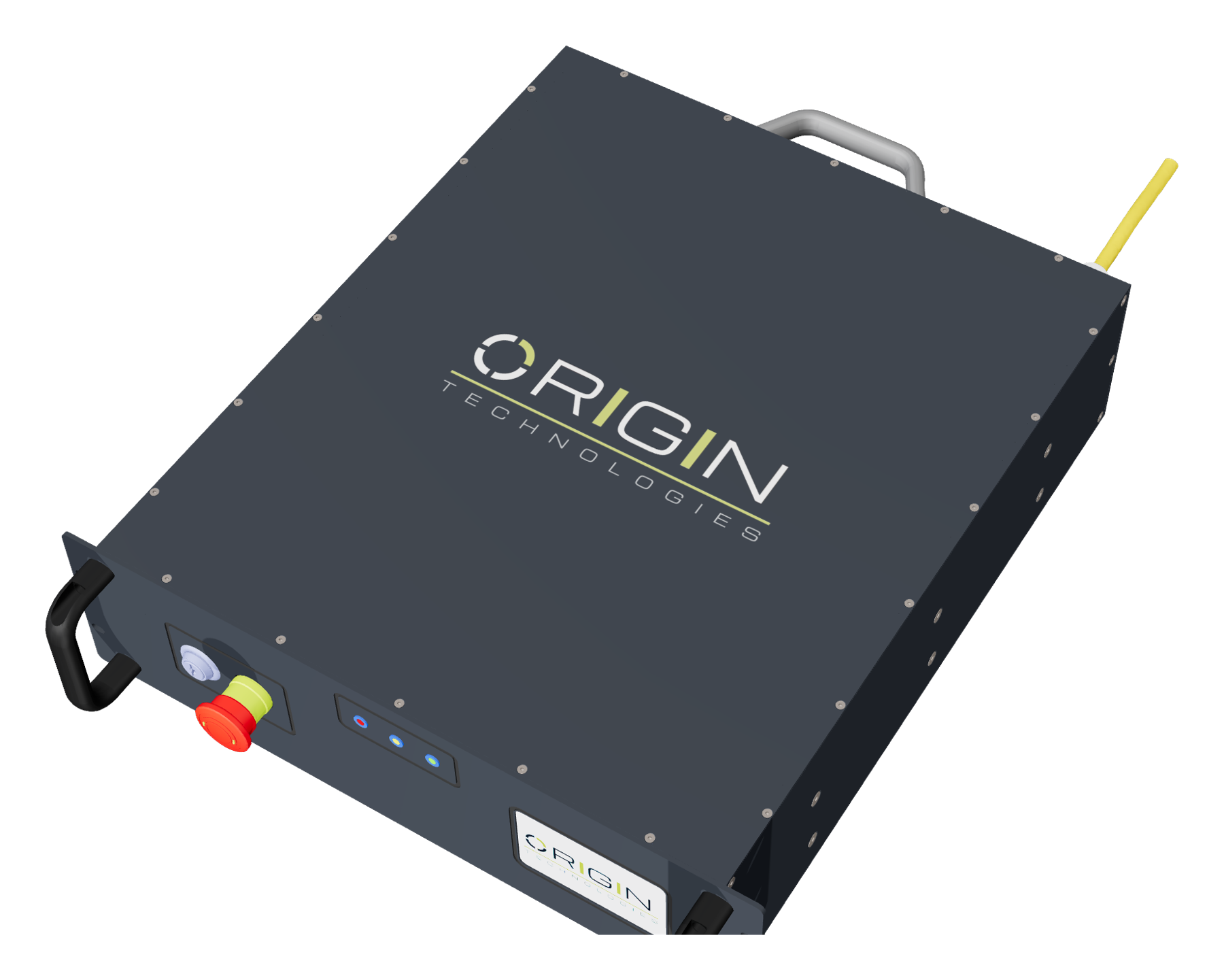

The ORGFL3000 delivers 3 kW of continuous-wave power at 1070 nm with M² < 3 through a 10 m QBH output fiber. Power is adjustable from 5 to 100 %, with modulation up to 30 kHz and rise/fall times under 50 µs. The front panel carries a key switch, emergency stop and status indicators; control runs over RS-485.
3 kW
CW output power
< 3
M² beam quality
≥ 40 %
Wall-plug efficiency
30 kHz
Max. modulation
Gallery
Key features
01
High beam quality
M² < 3 at 1070 nm, with a 1.5 nm typical emission bandwidth.
02
Fast modulation
0.005–30 kHz modulation and ≤ 50 µs rise/fall for fast piercing and contour cutting.
03
High efficiency
≥ 40 % wall-plug efficiency, drawing 15 A at full power from a 380 VAC 3-phase supply.
04
Rack-mount & safe

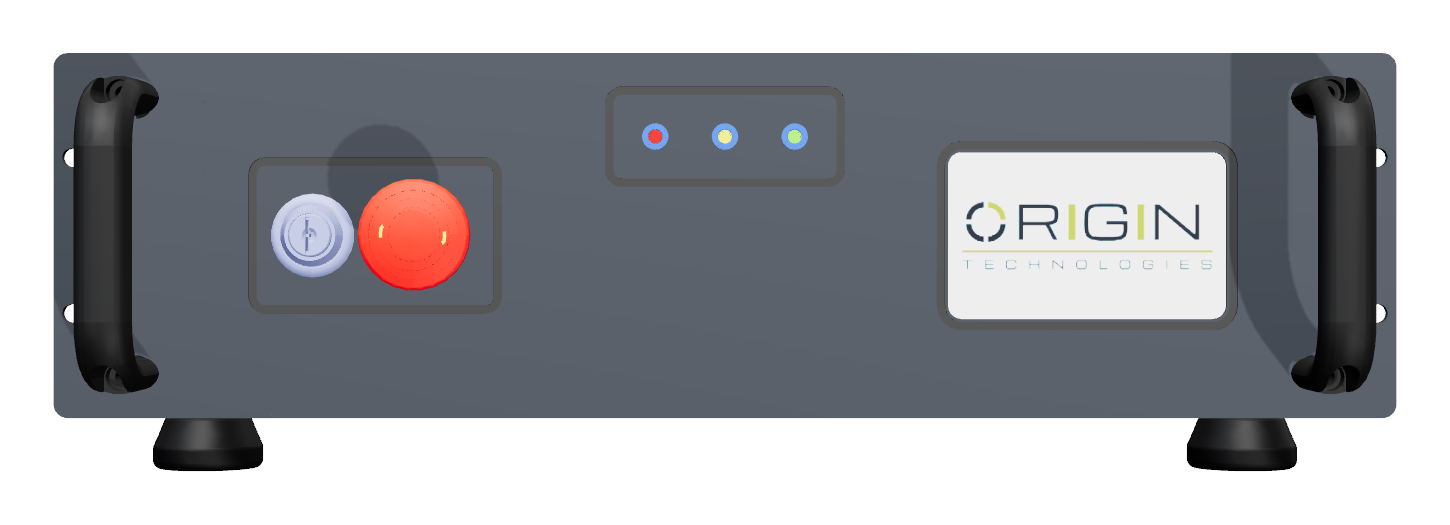

19″ chassis with key switch, emergency stop, status LEDs and a 650 nm red aiming beam.

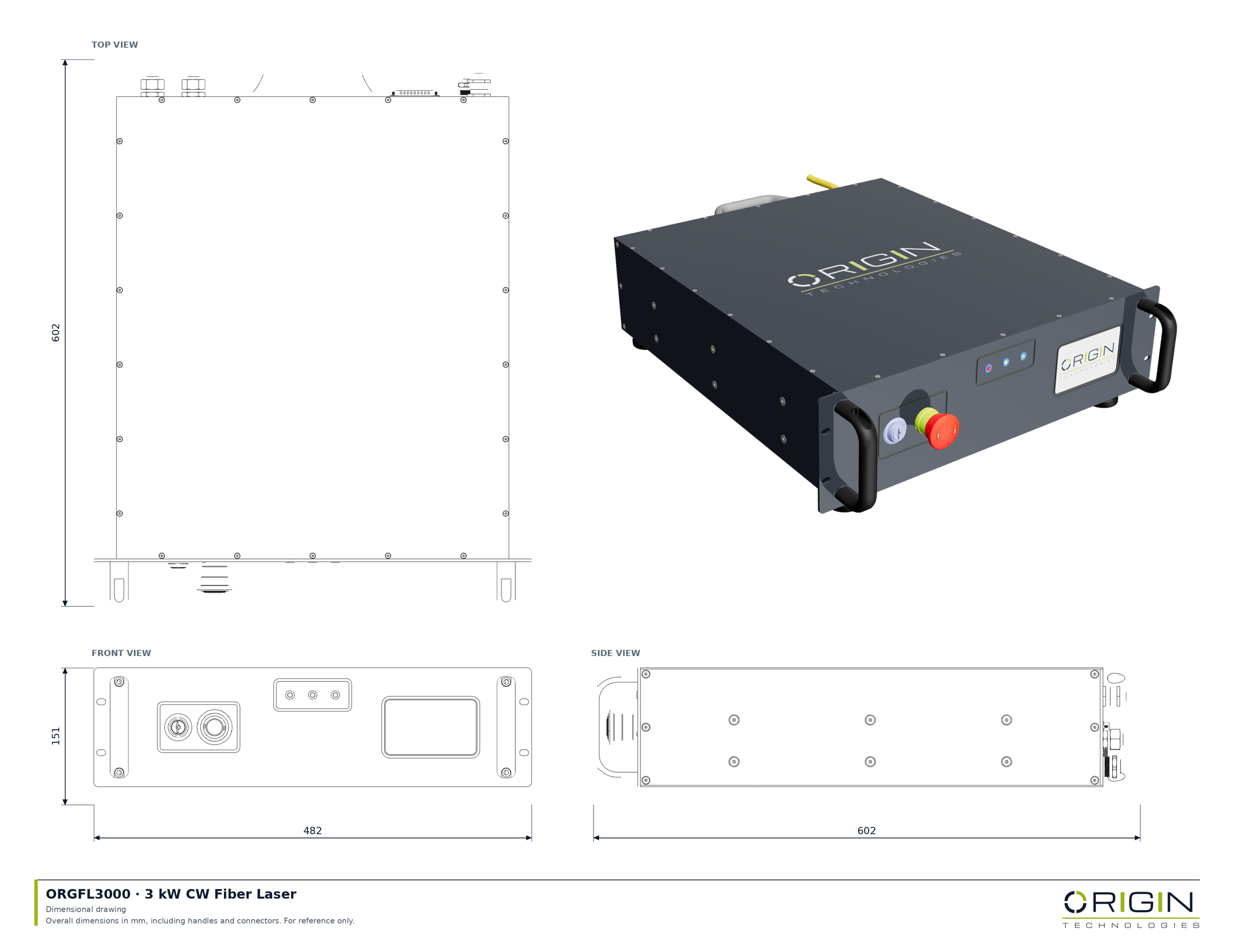

Dimensions
Overall dimensions in mm — top, front and side views.
Click to open full size.
Specifications
| Optical | |
|---|---|
| Output power | 3000 W (2940–3050 W) |
| Operation mode | CW |
| Power adjustment range | 5–100 % |
| Center wavelength | 1070 ± 5 nm |
| Emission bandwidth (FWHM) | 1.5 nm typ., ≤ 3 nm |
| Rise / fall time (1–95 %) | ≤ 50 µs |
| Modulation frequency | 0.005–30 kHz |
| Beam quality (M²) | < 3 |
| Beam divergence | 25 ± 5 mrad |
| Aiming beam | 650 nm red, 1 mW |
| Output fiber | QBH, 10 m |
| Wall-plug efficiency | ≥ 40 % |
| Electrical & control | |
| Supply | 380 VAC, 3-phase |
| Current at full power | 15 A |
| Communication interface | RS-485 |
| Cooling & environment | |
| Cooling | Water-cooled |
| Coolant temperature | 25 ± 2 °C |
| Flow rate | ≥ 28 L/min |
| Water pressure | 2.5–3.5 bar |
| Required cooling capacity | 5 kW |
| Operating temperature | 0–45 °C |
| Storage temperature | −5 to 50 °C |
| Relative humidity | 5–90 % |
| Mechanical | |
| Dimensions (W × H × D) | 482 × 140 × 650 mm (19″ rack) |
| Weight | ≤ 40 kg |
