Overview
The driver card delivers precisely regulated current to the laser's pump diodes. It receives current setpoints from the laser control card and drives up to eight channels independently — up to 50 A per channel at 120 V compliance, with less than 1% current ripple. A water-cooled cold-plate interface keeps it running in continuous industrial duty.

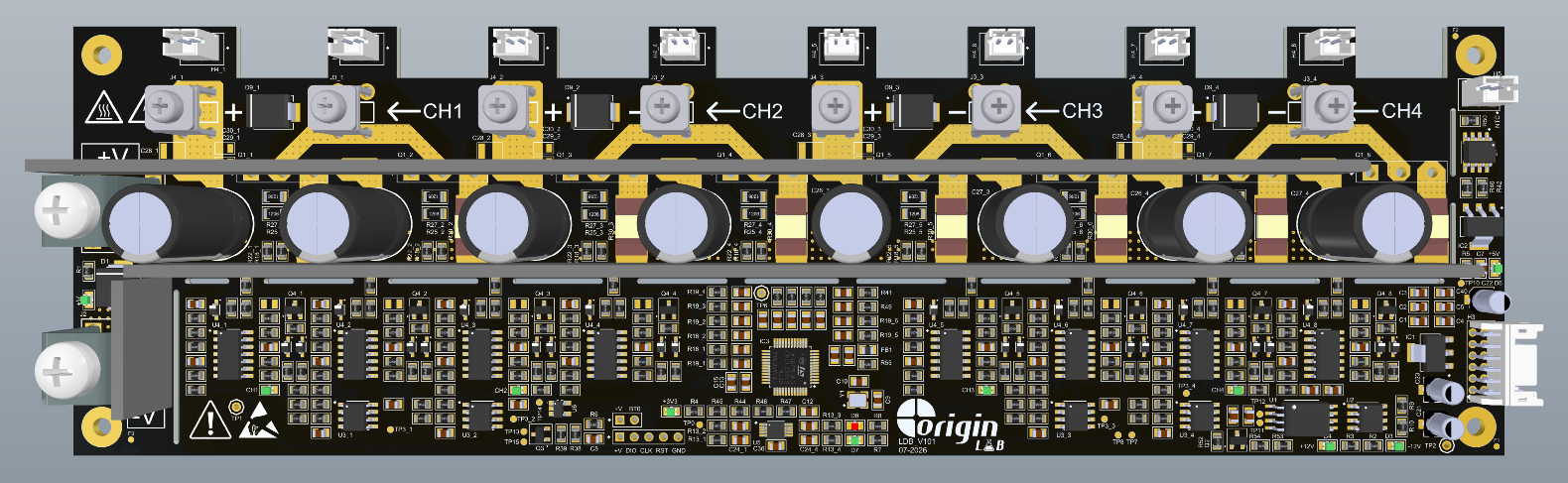

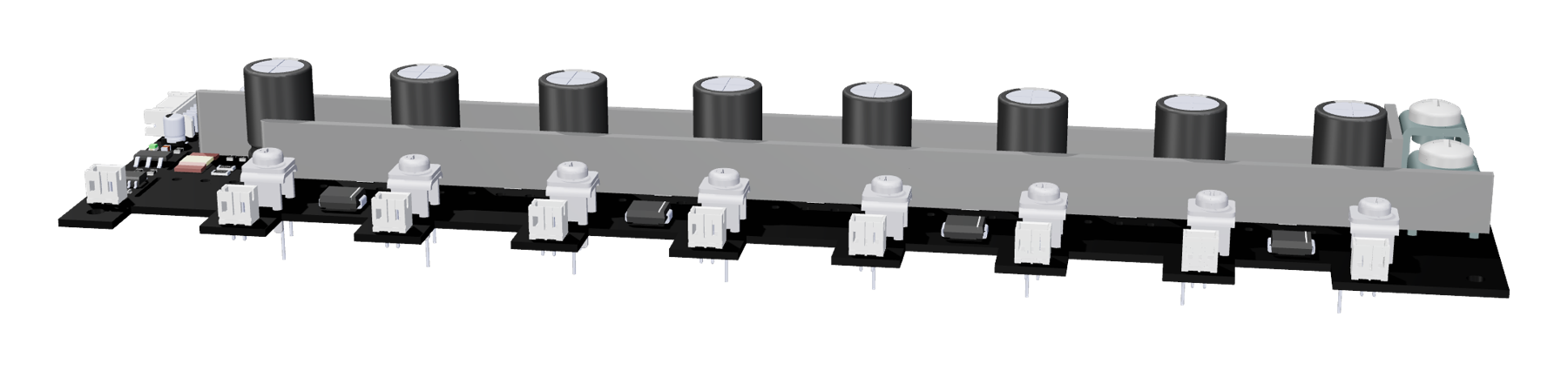

Gallery
Key features
Constant-current regulation
Up to 50 A per channel with <1% ripple and 50 µs rise/fall time for consistent laser output.
Multi-channel
Up to eight independent output channels on a single card, with 120 V compliance for long diode strings.
Control card integration
Receives current setpoints from the ORG_LCB_0530 laser control card over RS-422 / RS-485, from a single 24 VDC supply.
Thermal design
Interface for a water-cooled cold plate, for continuous-duty industrial operation.
Built-in protection
Overcurrent and over-temperature protection, plus transient and reverse-polarity protection on the diode outputs.
Dimensions

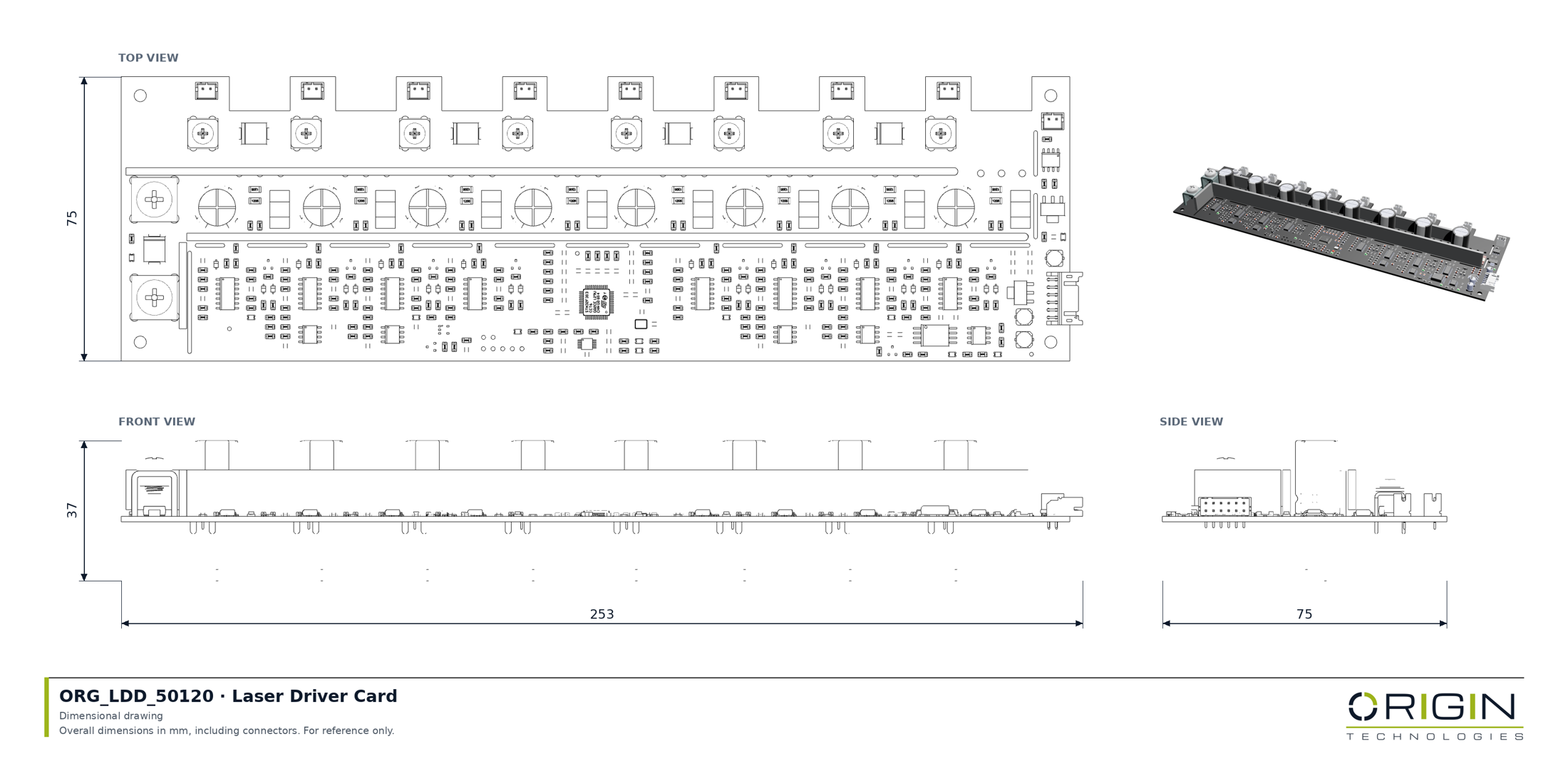

Overall dimensions in mm — top, front and side views.
Click to open full size.
Specifications
| Model | ORG_LDD_50120 |
| Board size | ≈ 253 × 75 mm [confirm] |
| Output channels | Up to 8 |
| Max. current per channel | 50 A |
| Compliance voltage | 120 V |
| Supply voltage | 24 VDC |
| Current ripple | < 1 % |
| Rise / fall time | 50 µs |
| Setpoint interface | RS-422 / RS-485 |
| Protection | Overcurrent, over-temperature, transient and reverse-polarity |
| Cooling | Water-cooled cold-plate interface |
